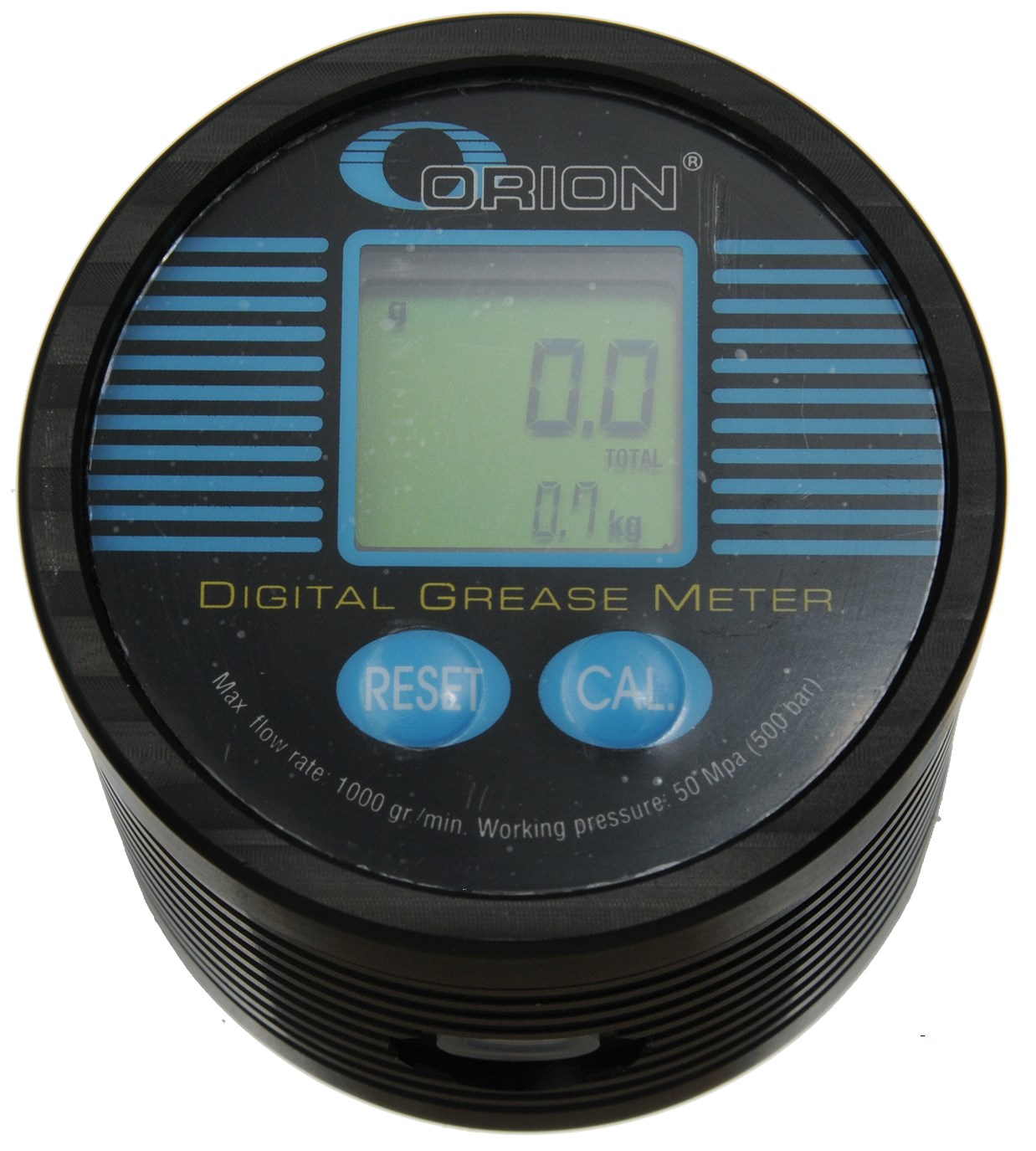

Digital grease inline meter. 1/8" (F) BSP 1000 gr/min 50 (500) MPa (bar)

This product has been replaced by Digital grease inline meter. 1/8" (F) BSP 2500 gr/min 70 (700) MPa (bar)

Equipped with current dispense display and resettable trip meter and non-resettable totalisors. Digital display powered by two 1,5 V AAA batteries. Accuracy +/- 3 %. Can be calibrated.

Technical data

Part No

14710

Capacity

1000 gr/min

Maximum working pressure

50 (500) MPa (bar)

Connection

1/8" (F) BSP

H.S. Code

90261021

Downloads

• 14710_EN_SE_1D.pdf
