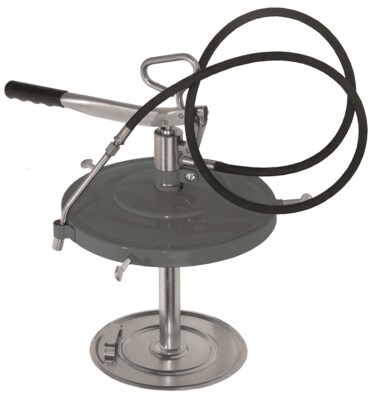

High pressure grease pump. Drum lid diameter Ø 285-330 mm

Mounts directly to a standard grease drum. Handle, drum lid, high pressure hose, outlet tube and hydraulic coupling included. Capacity 2gr/stroke. Max pressure 35 MPa (350 bar). Drum lid diameter Ø 285-330 mm

Technical data

Part No

11118

Capacity

2 gr/stroke

Dimension

Ø 285-330 mm

Maximum pressure

35 (350) MPa (bar)

H.S. Code

84132000

Downloads

• 11116-18_EN_SE_FR_DE_ES_1c.pdf
