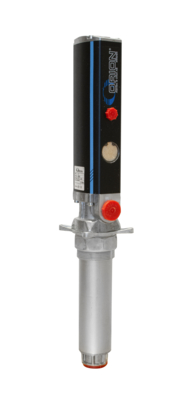

Pump 1:1 suction & waste oil stub. 18 l/min free flow

Double acting air operated oil pump for non-corrosive liquids, waste oil etc. For wall or floor installation, the pumps are designed to create maximum vacuum and will not race when there is no liquid in the suction side. Recommended when you can’t control the pumping process or when using suction probes. In other cases use the standard oil pumps.

Technical data

Part No

22802

Ratio

1:1

Capacity

18 l/min free flow

Air connection

1/4" (F) BSP

Maximum air pressure

1,0 (10) MPa (bar)

Inlet

1" (F) BSP

Outlet

3/4" (F) BSP

H.S. Code

84135069

Downloads

• 22800_-02_-05_EN_SE.pdf
• 22800_EN_SE_1d.pdf
